IDEX部件编号: FL-429409
For optimal filter set performance, pair this dichroic with AF01-504/24 and AF01-539/27, which have been optimized for Yellow Fluorescent Protein (YFP), Venus, ATTO 488, ATTO 514, ATO 520 and other key fluorophores. Precise edge placement of the steep transition edge combined with very high reflection and transmission bands maximize fluorophore performance compared to standard dichroics.
比较产品
| Optical Specifications | Value |
|---|---|

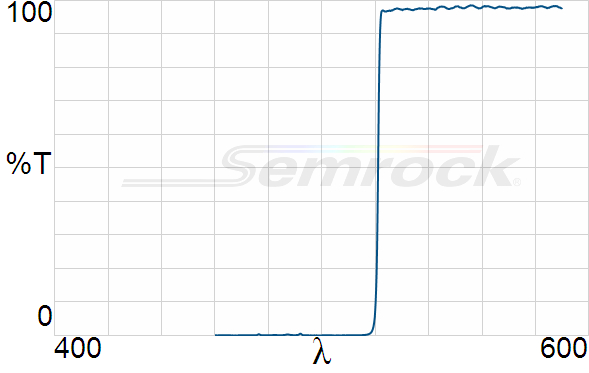

| Transmission Band 1 |
Tavg > 93% 525.5 – 580 nm |
| Edge Wavelength 1 |
521 nm |
| General Filter Specifications | Value |
| Angle of Incidence |
45 ± 1.5 degrees |
| Cone Half-angle |
2 degrees |
| Optical Damage Rating |
Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hrs. |
| Physical Filter Specifications | Value |
| Transverse Dimensions (L x W) |
25.2 mm x 35.6 mm |
| Transverse Tolerance |
± 0.1 mm |
| Filter Thickness (unmounted) |
1.05 mm |
| Filter Thickness Tolerance (unmounted) |
± 0.05 mm |
| Clear Aperture |
≥ 80% (elliptical) |
| Scratch-Dig |
60-40 |
| Orientation |
Reflective surface marked with part-Orient in incoming light |
| Flatness / RWE Classification |
Standard Epi-fluorescence |
| Reflection Band 1 |
Ravg > 98% 470 – 516.5 nm |
FL-007110
