390/16 nm Nanopede™ single-band bandpass filter

Semrock部件编号: FBP01-390/16-12.5

IDEX部件编号: FL-436445

Individual fluorescence bandpass filters that have been optimized for use in a variety of fluorescence instruments. Pair this filter with other Nanopede filters to step through the spectrum in 20 nm Full-Width, Half Max (FWHM) steps. This value approach to filter design provides essential filter performance for detector-based applications. This filter family is designed for scattered light and point detection applications only, for imaging applications, consider our BrightLine filters.

比较产品

Specifications
Related Products

Optical Specifications	Value

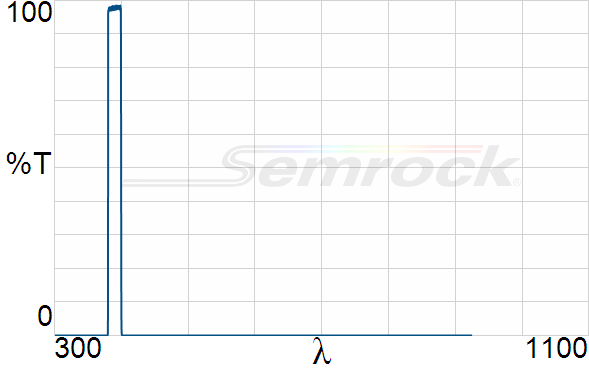

Transmission Band 1	Tavg > 93% 382 – 398 nm
Blocking Band 1	ODavg > 5 330 – 376 nm
Blocking Band 2	OD > 5 445 nm
Blocking Band 3	OD > 5 488 nm
Blocking Band 4	OD > 5 532 nm
Blocking Band 5	OD > 5 633 nm
Blocking Band 6	ODabs > 5 404 – 900 nm
Center Wavelength 1	390 nm
General Filter Specifications	Value
Angle of Incidence	0 ± 5 degrees
Cone Half-angle	7 degrees
Optical Damage Rating	Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hours.
Physical Filter Specifications	Value
Transverse Dimensions (diameter)	12.5 mm
Transverse Tolerance	+ 0.0 / – 0.1 mm
Filter Thickness (mounted)	3.5 mm
Filter Thickness Tolerance (unmounted)	± 0.1 mm, ± 0.1 mm
Filter Thickness Tolerance (mounted)	± 0.1 mm
Filter Thickness (unmounted)	2.0 mm
Clear Aperture	≥ 10 mm
Scratch-Dig	80-50
FWHM 1 (nominal)	20 nm
Exciter/Emitter Orientation	Arrow on ring indicates preferred direction of propagation of light.
GMBW 1	17 nm
